Prodcut Name:LR Series

Code: 1368686702 Price:0

Product Description

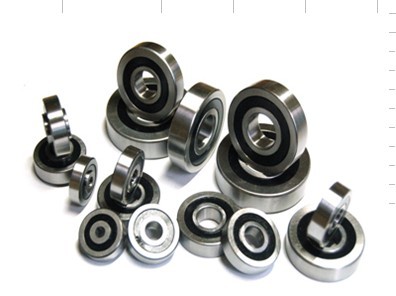

LR series track roller bearings
Bearing No.	Dimensions (mm)				Mass
FYB	d	D	B	C	(g)
LR200-X-2RS	10	32	9	9	50
LR200-2RS	10	32	9	9	50
LR201-X-2RS	12	35	10	10	50
LR201-2RS	12	35	10	10	50
LR201-15-X-2RS	12	35	15	10	70
LR201-15-2RS	12	35	15	10	70
LR202-X-2RS	15	40	11	11	70
LR202-2RS	15	40	11	11	70
LR202-14-X-2RS	15	40	14.4	11	80
LR202-14-2RS	15	40	14.4	11	80
LR203-X-2RS	17	47	12	12	110
LR203-2RS	17	47	12	12	110
LR204-X-2RS	20	52	14	14	150
LR204-2RS	20	52	14	14	150
LR205-X-2RS	25	62	15	15	230
LR205-2RS	25	62	15	15	230
LR206-X-2RS	30	72	16	16	330
LR206-2RS	30	72	16	16	330
LR207-X-2RS	35	80	17	17	400
LR207-2RS	35	80	17	17	400
LR208-X-2RS	40	85	18	18	450
LR208-2RS	40	85	18	18	450
LR209-X-2RS	45	90	19	19	500
LR209-2RS	45	90	19	19	500
LR50/5-2RSR	5	17	7	7	10
LR50/6-2RSR	6	19	9	9	20
LR50/7-2RSR	7	22	10	10	20
LR50/8-2RSR	8	24	11	11	30
LR5000-2RS	10	28	12	12	30
LR5001-2RS	12	30	12	12	30
LR5002-2RS	15	35	13	13	50
LR5003-2RS	17	40	14	14	70
LR5004-2RS	20	47	16	16	120
LR5005-2RS	25	52	16	16	150
LR5006-2RS	30	62	19	19	250
LR5007-2RS	35	68	20	20	300
LR5200-2RS	10	32	14	14	70
LR5200-X-2Z	10	32	14	14	70
LR5200-2Z	10	32	14	14	70
LR5201-2RS	12	35	15.9	15.9	80
LR5201-X-2Z	12	35	15.9	15.9	80
LR5201-2Z	12	35	15.9	15.9	80
LR5202-2RS	15	40	15.9	15.9	110
LR5202-X-2Z	15	40	15.9	15.9	110
LR5202-2Z	15	40	15.9	15.9	110
LR5203-2RS	17	47	17.5	17.5	170
LR5203-X-2Z	17	47	17.5	17.5	170
LR5203-2Z	17	47	17.5	17.5	170
LR5204-2RS	20	52	20.6	20.6	230
LR5204-X-2Z	20	52	20.6	20.6	230
LR5204-2Z	20	52	20.6	20.6	230
LR5205-2RS	25	62	20.6	20.6	340
LR5205-X-2Z	25	62	20.6	20.6	340
LR5205-2Z	25	62	20.6	20.6	340
LR5206-2RS	30	72	23.8	23.8	510
LR5206-X-2Z	30	72	23.8	23.8	510
LR5206-2Z	30	72	23.8	23.8	510
LR5207-2RS	35	80	27	27	660
LR5207-X-2Z	35	80	27	27	660
LR5207-2Z	35	80	27	27	660
LR5208-2RS	40	85	30.2	30.2	750
LR5208-X-2Z	40	85	30.2	30.2	750
LR5208-2Z	40	85	30.2	30.2	750
LR5302-2RS	15	47	19	19	150
LR5302-2Z	15	47	19	19	150
LR5303-2RS	17	52	22.2	22.2	210
LR5303-2Z	17	52	22.2	22.2	210
LR5304-2RS	20	62	22.2	22.2	340
LR5304-2Z	20	62	22.2	22.2	340
LR5305-2RS	25	72	25.4	25.4	500
LR5305-2Z	25	72	25.4	25.4	500
LR5306-2RS	30	80	30.2	30.2	670
LR5306-2Z	30	80	30.2	30.2	670
LR5307-2RS	35	90	34.9	34.9	970
LR5307-2Z	35	90	34.9	34.9	970
LR5308-2RS	40	100	36.5	36.5	1200
LR5308-2Z	40	100	36.5	36.5	1200
