Location:Index--->Product Center >> Single direction, sphered housing washer >> 53200 Series

Prodcut Name:53200 Series

Code: 1368945383 Price:0

Product Description

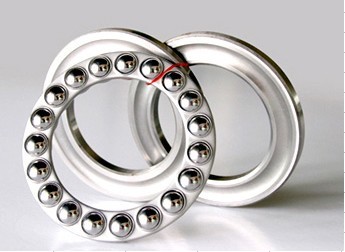

thrust ball bearings

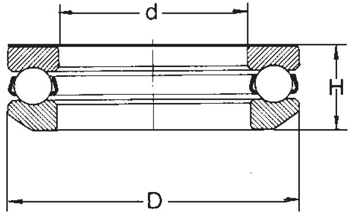

Bearing NO.	d	D	H1	Cr	C0r	Weight
Bearing NO.	mm	mm	mm	kN	kN	kg
53201U	12	28	13	13.3	20.8	0.045
53202U	15	32	15	16.5	27	0.063
53203U	17	35	15	17.2	30	0.071
53204U	20	40	17	22.5	40.5	0.1
53205U	25	47	19	27.6	55	0.15
53206U	30	52	20	25.5	51	0.18
53306U	30	60	25	37.7	71	0.33
53207U	35	62	22	35.1	73.5	0.28
53307U	35	68	28	49.4	96.5	0.46
53208U	40	68	23	46.8	106	0.35
53308U	40	78	31	61.8	122	0.67
53408U	40	90	42	112	224	1.35
53209U	45	73	24	39	86.5	0.39
53309U	45	85	33	76.1	153	0.83
53210U	50	78	26	49.4	116	0.47
53310U	50	95	37	88.4	190	1.2
53410U	50	110	50	159	340	2.31
53211U	55	90	30	61.8	146	0.75
53311U	55	105	42	104	224	1.68
53411U	55	120	55	178	390	3.08
53212U	60	95	31	62.4	150	0.82
53312U	60	110	42	101	224	1.71
53412U M	60	130	58	199	430	3.8
53213U	65	100	32	63.7	163	0.91
53313U	65	115	43	106	240	1.89
53214U	70	105	32	65	173	0.97
53314U	70	125	48	135	320	2.5
53414U M	70	150	69	234	550	6.5
53215U	75	110	32	67.6	183	1
53315U	75	135	52	163	390	3.2
53415U M	75	160	75	251	610	8.1
53216U	80	115	33	76.1	208	1.1
53316U	80	140	52	159	390	3.3
53416U M	80	170	78	270	670	9.4
53217U	85	125	37	97.5	275	1.5
53317U	85	150	58	190	465	4.35
53218U	90	135	42	119	325	2.1
53318U	90	155	59	195	500	4.7
53418U M	90	190	88	307	815	13
53220U	100	150	45	124	345	2.7
53320U	100	170	64	229	610	5.95
53420U M	100	210	98	371	1060	18
53222U	110	160	45	130	390	2.91
53322UM	110	190	72	276	780	9.1
53224U	120	170	46	140	440	3.2
53324U M	120	210	80	325	980	12.5
53226U	130	190	53	186	585	4.85
53228U	140	200	55	190	620	5.45
